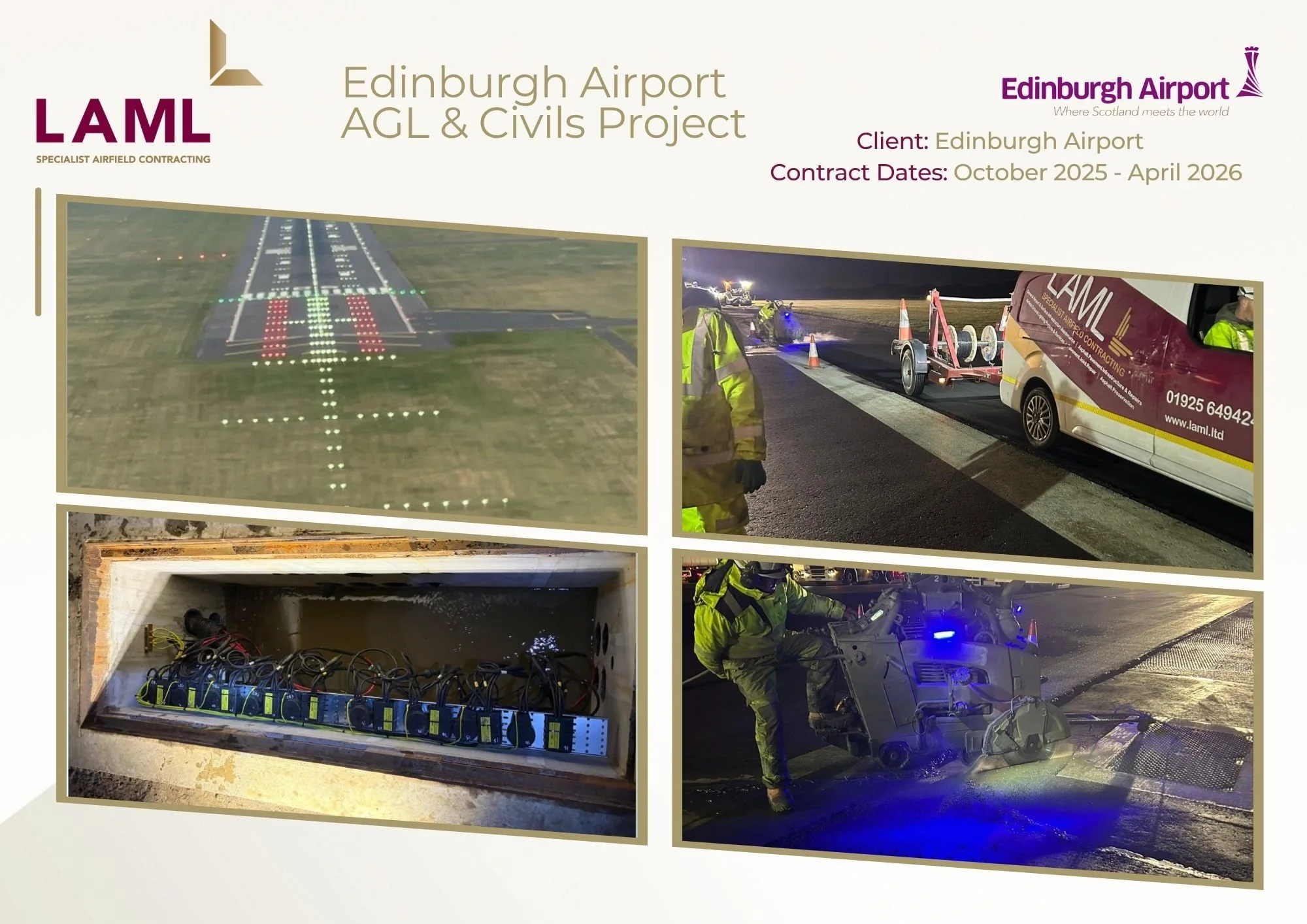

Edinburgh Airport AGL & Civils Project
AGL and AGL Civils work on the Edinburgh Airport
Client: Edinburgh Airport
Contract Dates: October 2025 - April 2026
LAML were appointed to undertake both AGL and AGL Civils work on the Edinburgh Airport Runway rehabilitation project for Lagan Aviation.
Brief description of works completed:
Civils:
Installation of 118 no stabilisations of AGL Seating pots utilising rapid-set concrete poured in situ ( 750mm wide x 750mm deep). In order to meet client requirements, the concrete had to achieve 20N at hand-back within the 5-hour shift.
800 no pre-cast stabilisation installations.
7500 lm of AGL Cable chase saw cutting and sealing using 95/25 oxidised bitumen.
Removal & replacement of 1050 nr AGL seating pots.
Airfield Ground Lighting activities:
06/24 runway AGL Earthing System improvements.
New LV cabling to 06/24 Runway Weather Sensor Control Cabinets.
Supply, installation & commissioning of 40nr new CCRs & Earthing.
AGL LED lighting upgrade - 1400nr new fittings installed to all 06/24 Runway Services, 24/06 Approaches, CATI & CATIII Stop Bars.
Upgrade and replacement of 1400nr Series Isolating Transformers.
Upgrade and replacement of DUAL switching units & switching transformers to CATI & CAT3 Stop Bars.
Supply & installation of New LED PAPIs to 06/24 runway.
Installation of new 1-core 4 mm secondary cabling to CATI & CATIII Stop Bars, Taxiway Lead-on/Lead-off lights & runway centre line.
Flight Calibration Check.
